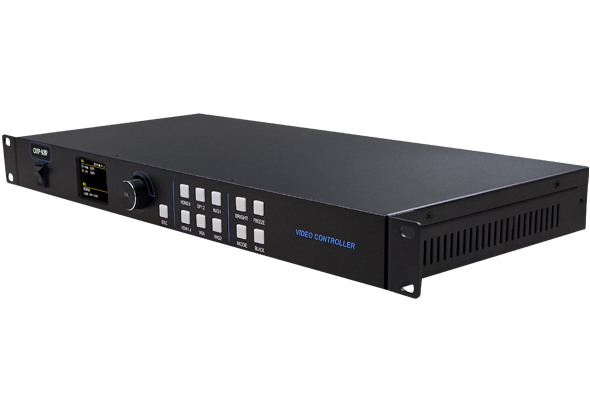

Maximum support 6.55 million pixels,width≤8000 pixels,height≤3840 pixels;
Input interface:DP1.2*1,HDMI2.0*1,DVI*1,EXT*1,VGA*1,support 2 channels 4Kx2K@60Hz；
2.0 "LCD on board, support multi language menu interface (Chinese, English, Russian, Vietnamese);
RS232 port on board, can connect central control equipment;
1U case ,weight≤3.8KG.
Hotline：
+86 15921814956| Video Input source | ||
|---|---|---|
| DVI*1 | VESA standard: 1920*1080@60Hz downward compatible, support 3840*2160@30Hz | |
| HDMI*1 | VESA standard: 3840*2160@60Hz downward compatible, HDMI 2.0 | |
| VGA*1 | VESA standard，1600*1200@75Hz downward compatible | |
| DP*1 | VESA standard: 3840*2160@60Hz downward compatible, DP1.2 | |
| Video Output Port | ||
|---|---|---|
| NET×10 |
10 Gigabit Ethernet port output, connect LED display by LAN cable, directly connect with receiving card total pixels:≤10.48 million pixels, width≤8000, height≤3840, |
|
| Audio Input/Output Port | |
|---|---|
| HDMI audio | Built in HDMI audio input port |
| AUDIO_IN | 3.5mm simulate audio input port |
| AUDIO_OUT | 3.5mm simulate audio output port |
| Control interface | |
|---|---|
| COM | USB control interface |
| LAN | Internet control interface |
| RS232 | Serial port, can connect with central equipment |
| Important function | |
|---|---|
| Communication function | Support serial communication, support LAN communication and IP address configuration, RS232 central port on board Complete related parameter setting and function configuration of OVP equipment, complete parameter setting of LED display |
| Port extending | 3G-SDI port is optional, Mobile phone wirelss screen cast is optional |
| Schedule Task | Support timing switch of input video source |
| Intelligent navigation | LCD menu supports intelligent navigation function |
| Multi-language | LCD menu supports Chinese, English, Russian, Vietnamese |
| Start LOGO | Suppott default, customized and without LOGO |
| Intelligent configuration | Support equipment parameter adaptation according to the resolution of LED display screen |
| Multi-windows | Support double windows display, support PIP and POP |
| Mirror image | Support vertical mirror image, horizontal mirror image, horizontal&vertical mirror image |
| Image capture function | Support the capture and partial display of input video source image |
| Point to point function |
Support on and off of point-to-point signal output mode |
| Brightness adjustment | Support 100 level brightness adjustment |
| EDID setting | Support customized input resolution of HDMI, DVI,DP signal |
| VGA Correction | Support VGA adjustment and VGA ADC correction |
| Output control | Support open&close of output signal |
| Color temperature adjustment | Preset natural, warm, cold three kinds of display effect, user can also customize the color temperature |
| Image quality | Pre set bright/gentle image quality mode |
| User mode | Support pre storage ≤ 16 user modes, convenient for scene switching |
| Hot backup | Support hot backup function of input and output image |
| Facotry reset | Support reset to factory settings |
| Button lock | Support setting button lock/unlock status of equipment |
| Engineering lock | Support setting engineering lock |
| System update and maintenance | |
|---|---|
| Firmware update | Support update firmware and FPGA online |
| Details | |
|---|---|
| Input voltage | 100-240V~50/60Hz |
| Maximum power | ≤50W |
| Operation |
LCD menu, Panel buttons, LedshowTV, OVP Builder, |
| LCD screen | 2.0" colour LCD screen, resolution is 320*240 |
| Accessory | 3Pin power cable 1.5M * 1, WIFI antenna*1 ,Cat 6 network cable*1 ,USB-A-B cable 1.5M * 1, HDMI2.0 cable 1.5M * 1, HDMI to DVI *1; |
| Size | 482.6mm×300mm×66.6mm |
| Box | 1U standard box |
| Weight(excluding package) | ≤3.8Kg |
| Environmental adaption | |
|---|---|
| Working temperature | -30℃～70℃ |
| Ambient humidity | 15%～85% |
| Electromagnetism compatibility | |
|---|---|
| Wireless harass | Testing for power supply port, HDMI,DVI,VGA,CV ,USB and serial port, all reach the standard |
| Immunity of discharging static electricity |
Testing for USB port,HDMI,DVI,VGA, and CV port, Level 4, discharging 8KV. Reach the standard |
| Surge impact | Testing for power supply port, Level 4, discharging voltage is 4KV. Reach the standard |
