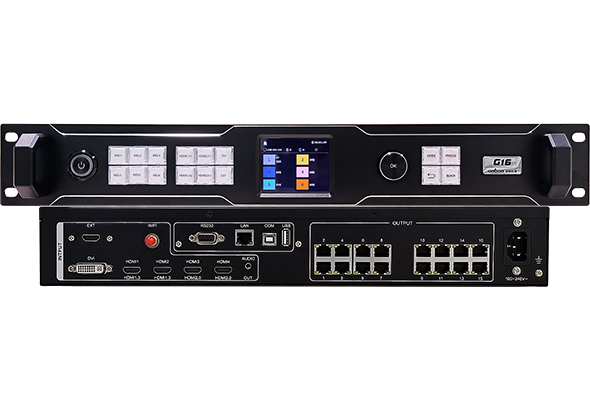

OVP-G16 six windows 16 ports

OVP-G16 8K Ultra HD video controller is designed to meet the large-scale stage performance occasions with strict requirements for video switching.It is integrated 16 gigabit ports.8K picture processing and splicing technology for small space LED display.

Maximum support 10.48million pixels,width≤8 192pixels,height≤8 192pixels;

Input interface:HDMI2.0*2、HDMI1.3*2、DVI*1、EXT*1,support 2 channels 4Kx2K@60Hz and 2 channels 4K*2K@30Hz;

5 "LCD on board, support multi language menu interface (Chinese, English, Russian, Vietnamese);

WIFI on board, support APP;

RS232 port on board, can connect central control equipment;

2U case ,weight≤6.2KG.

Hotline:

+86 15921814956
+86 15850351852

OVP series products adopt the design of integrating sending card, which not only improves the reliability, but also brings great convenience for remote maintenance of LED display;
Support timing switch of input video source;
Support turning on/off of equipment output signal;
Support customized  resolution;
Support point-to-point input and output;
Support the capture and partial display of the input video source image;
Support input adaptive signal source resolution;
Support output adaptive display parameter configuration;
Support fast and flexible color temperature adjustment;
Support input and output signal hot backup;
Restore 8/16 kinds of user modes for fast using;
Support on-line update of firmware and FPGA, which greatly facilitates system development, maintenance and function upgrading.



OVP-L/M series, on board USB2.0 port,Support display by U flash, support image display ,video display ,image and video mixed display modes;
OVP-M/H series, on board  WiFi (except OVP-M1X), 2.8 "LCD as standard, and supports multi language menu interface (Chinese, English, Russian, Vietnamese);
OVP-M/H series support EXT * 1 expansion interface (except OVP-M1X). SDI module or wireless screen cast are optional;
OVP-H series support 1-2 channels DP input interface and RS232 central control interface;
OVP series(Except G Series) on board audio input and output interface.


Testing and Certification
OVP series products have passed 3C certification;
OVP series products have passed  CE certification;
OVP series products have passed the six regulations of ROHS 2.0 "administrative measures for the restriction of hazardous substances in electrical and electronic products" and GB / T 26572-2011;
OVP series products have passed the EU ROHS "directive on the restriction of the use of certain harmful ingredients in electronic and electrical equipment".

Video Input source
HDMI2.0*2 VESA standard: 4K@60Hz downward compatible
HDMI1.3*2 VESA standard: 2K@60Hz downward compatible,
DVI*1 VESA standard: 2K@60Hz downward compatible
EXT*1 Extended input port, HDMI on board. According to users' requirements, it can be DVI port, SDI port and wireless screen cast



Video Output Port
HDMI monitor*1 1024×768@60Hz
NET×16

16Gigabit Ethernet port output, connect LED display by LAN cable, directly connect with receiving cards

total pixels:≤10.48million pixels, width≤8 192, height≤8 192 pixels



 Audio Input/Output Port
HDMI audio Built in HDMI audio input port
AUDIO_OUT 3.5mm simulate audio output port



Control interface
COM USB control interface
LAN Internet control interface
WIFI WIFI wireless control
RS232 Serial port, can connect with central equipment



Important function
Communication function Support serial communication, support LAN communication and IP address configuration, WIFI on board, and support APP,RS232 central port on board
Complete related parameter setting and function configuration of OVP equipment, complete parameter setting of LED display
Port extending 3G-SDI port is optional, Mobile phone wirelss  screen cast is optional
Schedule Task Support timing switch of input video source
Intelligent navigation LCD menu supports intelligent navigation function
Multi-language LCD menu supports Chinese, English, Russian, Vietnamese
Start LOGO Suppott default, customized and without LOGO
Intelligent configuration Support equipment parameter adaptation according to the resolution of LED display screen
Fast switch for signal Seamless switch  for signals by "fast switch mode"
Multi-windows Support double windows/three windows/four windows display, support arbitrary placement
Mirror image Support vertical mirror image, horizontal mirror image, horizontal&vertical mirror image
Image capture function Support the capture and partial display of input video source image
Point to point function

Support on and off of point-to-point signal output mode

Brightness adjustment Support 100 level brightness adjustment
EDID setting Support customized input resolution of  HDMI, DVI,DP signal
VGA Correction Support VGA adjustment and VGA ADC correction
Output control Support open&close of output signal
Color temperature adjustment Preset natural, warm, cold three kinds of display effect, user can also customize the color temperature
Image quality Pre set bright/gentle image quality mode
User mode Support pre storage ≤ 16 user modes, convenient for scene switching
Hot backup Support hot backup function of input and output image
Facotry reset Support reset to  factory settings
Button lock Support setting button lock/unlock status of equipment
Engineering lock Support setting engineering lock
System update and maintenance
Firmware update Support update firmware and FPGA online



Details
Input voltage 100-240V~50/60Hz
Maximum power ≤100W
Operation

CD menu, Panel buttons, LedshowTV, OVP Builder, Builder APP

LCD screen 5" colour LCD screen, resolution is 800*480
Accessory 3Pin power cable 1.5M * 1, WIFI antenna*1,Cat 6 network cable*1
,USB-A-B cable 1.5M * 1, HDMI2.0 cable 1.5M * 1, HDMI to DVI  *1;
Size 482.6mm×333mm×88mm
Box 2U standard box
Weight(excluding package) ≤6.2Kg



Environmental adaption
Working temperature -30℃~70℃
Ambient humidity 15%~85%



Electromagnetism compatibility
Wireless harass Testing for power supply port, HDMI,DVI,VGA,CV ,USB and serial port, all reach the standard
Immunity of discharging static electricity

Testing for USB port,HDMI,DVI,VGA, and CV port, Level 4,  discharging 8KV. Reach the standard

Surge impact Testing for power supply port, Level 4, discharging voltage is 4KV. Reach the standard
File Name Explain Download times Download
LedshowTV 2020

Version:V22.07.08.00

1149
OVP Builder Pro

Version:V22.06.15

569
Firmware for OVP-G16

Version:V22101501

32
OVP Builder

Version:22.07.04.00.

994
G16 specification

Version:V20220310

94
OVP center control protocol

Version:V20210623

172
CE certificate for Video processor

Version:V20210702

898
OVP-L1 Specification

Version:2017-07-20

832
