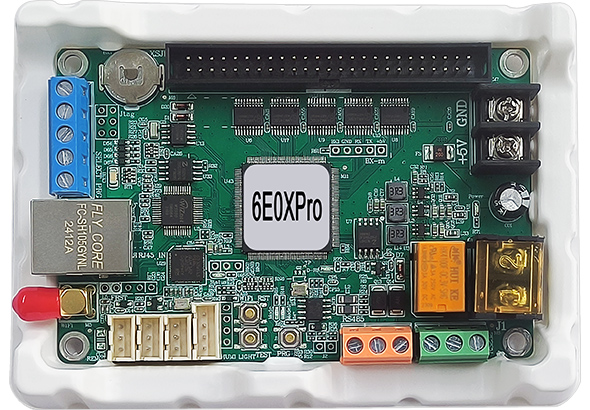

BX-6E0XPro(网+RS232+RS485) /+WiFi

Dual-core super performance, ultra long and large load capacity, special controller for complex projects such as various intelligent traffic screens and information dynamic refresh screens.It is designed with full functionality and strong network adaptabi

Support 256 levels of grayscale and a storage capacity of 32MByte.USB interface is not supported;

Support video animation, greatly improving the full-color display effect;

100M Ethernet+RS232+RS485 on board ,WiFi is optional;

Onboard multiple sensor interface,  relay switch, program selection interface;

Match with BX-WIFIm module, support WIFI wireless communication;

Match with BX-4Gm module, support 4G wireless communication + Chinese voice broadcasting;

Match with BX-YYm, support Chinese&English voice broadcasting;

Optional BX-RF433 remote control kit, supporting 150m long distance remote control;

Coated with UV three proofing glue, GB double 85 protection grade, dustproof, moisture-proof, anti-static, anti salt fog;

-40 ~ 80 C ambient temperature, 3.5V-5.5V wide voltage, 7*24 hour continuous power, less than 0.3% failure rate.

Hotline:

+86 15921814956
+86 15850351852

The new sixth-generation graphic controller, "Multi-scene ▪Full-Featured, dedicated controller for large engineering LED display projects
Comply with T COEMA 102S-2018 general technical requirements for asynchronous  no grayscale LED display controller (card)


The simplest screen displays the most beautiful picture
With the new sixth-generation controller, The  LED display screen is more beautiful


The hardware and software of the new sixth-generation graphic controller have been upgraded comprehensively
The full series supports 64/256 levels of grayscale, video animation, and storage capacity of 8/32MByte
(1) 6MPro includes four models: 6MTPro /6M0Pro /6M1Pro /6M2Pro
     The 6MPro is equipped with WiFi as standard.Support 64 levels of grayscale, with a storage capacity of 8MBtye. This significantly enhances the speed of leftward scrolling and greatly improves the full-color display effect
     6MPro comes standard with enhanced network functionality
(2) 6EXPro includes four models: 6E0XPro /6E1XPro /6E2XPro /6E3Pro
     6EXPro is equipped with WiFi.Support 256 levels of grayscale, with a storage capacity of 32MByte, significantly enhancing the full-color display effect
     Introducing the 6E0XPro, a replacement for the 6M3P/6M4P
(3) Add X-6EXPro dual-core WiFi controller, including 3 models: X-6E0XPro /6E1XPro /6E2XPro
     Onboard 50PIN interface, mainly used for single and dual color screens, with long and large load capacity
     Support 256 levels of grayscale, support video animation, and have a storage capacity of 32MByte
(4) Add X-VQ dual-core WiFi controller, including 6 models: X-4VQ256 /4VQ512 /4VQ1024, X-8VQ256 /8VQ512 /8VQ1024
     Onboard multiple sets of 75 interfaces, dedicated to full-color screens, with ultra-long and large load capacity
     Support 256 levels of grayscale, support video animation, and have a storage capacity of 32MByte
⑸  X-WQ Single-core WiFi controller is fully upgraded
     Onboard multiple sets of T12 or 75 interfaces, mainly used for small and medium-sized single and dual color screens as well as full color screens
     Support 64-level grayscale, support video animation, and have a storage capacity of 4MB
(6) 6KPro, 6XPro, 6APro&4G will greatly improve the display effect and performance indicators

The new sixth-generation products inherit the advantages of large LED cluster display systems and customized development projects with core technologies!
The new sixth generation of products continues the product concept of "passion, innovation and definition of perfect display" by Onbon Technology!

Technical parameters
Product status      Launched into market in Sep 2024
Control size

Control size 128K,W≤2048

Display mode Single color :2048*2562048*64 1024*128 512*256
Storage 32MByte



Program quantity Support 256 programs.Customized for special requirement.
Area quantity Each program maximum support 32 areas.Customized for special requirement.
Area type Weather/Image&text//subtitle/animation /lunar/ time/dial/timer/sensor areas
Border Program shine border /Area shine border
Clock Lunar /Dial/ Chinese and English clock/timer (all support multi-groups)
Software function group sending/multi-program edit/multi-area display/multi-language version;



Display effect
Moving smoothness  No cross lines when moving to the left, and will not shake when lower the moving speed.
the brightness will not be lower when move left in a long screen;
Program stability Support adjusting moving speed; high refresh rate,  stable running on screen;

Best upload width

In the maximum width can ensure the best visual effect.



Module compatibility
Module Support all kinds of single/dual/tri color modules
Column driver IC Support 74HC595,SM16188,common  constant current chip, double latch chip and other mainstream LED drive chip Not support all PWM chip
Row decoding IC Support 74HC138 row decoding/none decoding module,not support other row decoding IC,infuture will support
Scan mode Support smart scan,support any kinds of scan mode from static to 1/32
Module empty spot Support any empty spot



Interfaces
Interface 1 nos of 50 pin
Communication 100M Ethernet+RS232+RS485+USB   RS232 communication distance ≤ 200m
Sensor IR  / brightness/temperaure/temp&humidity sensor socket on board
Program selection  Standard with 4 bits programs selection port.Support external signal to  switch 16 programs;  I/O more program switching requirements.
Remote switch On board Relay. remote ON-OFF screen



Important functions
Communication Support direct link LAN and internet communication, IP online configuration and group setting, auto checking MAC inflict and IP inflict.Support RS232 and RS485 serial communication; support USB download font library; optional WiFi to meet the wireless local area network application; support 4G DTU wireless communication;
Communication encryption algorithms and information security strategies Adopt advanced communication encryption algorithms and information security strategies Designed with no operating system and does not support remote login; ⑵ Adopt custom communication protocols; ⑶ Load a new communication encryption algorithm. Each controller can set an independent 32-bit communication password, which is combined with the highly secure SHA256 algorithm and a custom algorithm. After setting the password, the controller only supports encrypted communication. Reject all illegal connections in case of incorrect password.
Network enhancement BX-6E1XPro isolates invalid network data, adapts to busy complex network (including more cameras), and has more stable communication.Support RS232 and RS485 serial communication; support USB download font library; optional WiFi to meet the wireless local area network application; support 4G DTU wireless communication;
Program displaying

Play in order, Play by timing and emergency notice.Standard with 4 bits programs selection port.Support external signal to  switch 16 programs;  I/O more program switching requirements

Timing switch Support auto timing switch,software switch
Brightness adjust 16 grade brightness, support manual /timing/auto adjust mode
Remote switch Support auto timing switch,software switch
program monitor Support synchronous monitoring function for program playback
Action time Support the display function of combat time. Various supporting displays suitable for military equipment and combat command systems
Multi-page functions Dynamic area support display multi pages, users can distribute and control the numbers of pages
Normal sensor function Support temp/humidity sensor connection and display.support brightness sensor connection.

Environmental

monitoring sensor

Support wind speed, wind direction, air quality, noise, atmospheric pressure, light, and negative oxygen ions; Support radar speed measurement, water level, rainfall, etc

Weather report Support China & overseas weather report

Dynamic refresh info

Support 32 dynamic areas,the information update speed of serial communication can reach within 20ms when upload the single color with 128*32

Voice broadcast function Match with BX-YY to support Chinese and English voice broadcast. The display content can be broadcast simultaneously, or other content can be broadcast independently.
Parameter fast
configuration

Supports saving and reading back configuration parameters

Any layout Support arbitrary typesetting rules in Mongolian, Hebrew, Arabic, etc, easy to make vertical font

Secondary development

Provide secondary development packages ,support windows / Linux / Android / IOS and other major systems, including various dynamic libraries, communication protocols, test routines, etc;
Supports Java / C / C + + / C # / Delphi and other mainstream programming languages, supports users to carry out secondary development on various platforms, and meets the development and expansion of user's personalized customization function to the greatest extent.

Cloud application and information safety Support iLedCloud/iLEDSys platform and iLedCloud wechat mini program.
Functions: real name authentication,  different grade roles, edit/check/release program, self-adapt program, etc.
Remotely manage LED displayes and monitor the status of LED displays. Create program report, online monitor informations on screen, and guarantee safety of informations.



System update and maintenance
Platform update iLEDCloud and iLEDSys update online;
Firmware update Support firmware update online,cost efficient



Electricity parameters
Working voltage  5V(3.5V~5.5V wide working voltage )
Max power ≤5W



Environmental adaption
Working temperature -40℃~80℃
Salt-spray resistant level

There is no problem for the distance 500M from sea



Electromagnetism compatibility
Wireless harass Testing for power supply port, LAN and serial port, all reach the standard
Immunity of discharging static electricity

Testing for LAN, serial, USB, sensor, I/O ports. Level 4,  discharging 8KV. Reach the standard

Surge impact Testing for power supply port and LAN port. Level 4, discharging voltage is 4KV.



Quality assurance
Quality standard 7*24 hours power-on, fault rate ≤0.3%
Construct protection

Plastic bracket, inflaming retarding, insulation, antiseptic, environmental, anti-static, high temperature resistance

Apperance protection UV three-protection glue for all types, national standard 85 protection level, dust prevention, dampproof, anti-static, salt-spray proof



Terminal management and auto control
 Network communication Support LAN and internet
Manage device PC,Android and IOS
Remote control System parameters configuration, program playing controlling, update sending program, adjust brightness automatically, turn on/off screen by timing.
Software

LedshowTW(PC software), Ledshow( mobile phone APP)
Cloud platform:iLEDCloud, iLEDCloud wechat mini program, iLEDSys(enterprise version/setup separately)
