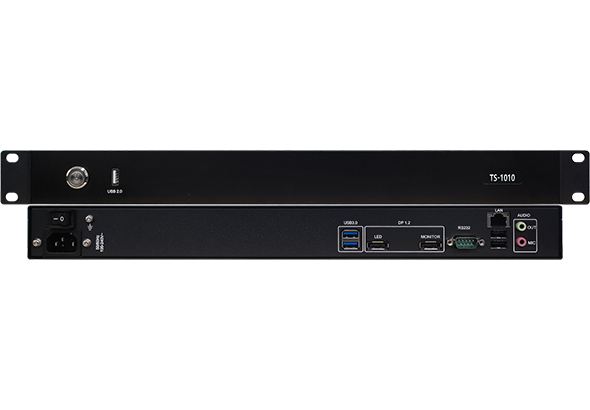

TS1010 Multimedia Server

The TS1010 is a high-end multimedia server designed for use with the ThinkShow control software, delivering robust playback and control capabilities. With excellent scalability and high operational stability, it is widely utilized in performances, exhibit

TS1010 is a high-end multimedia server that, when paired with ThinkShow broadcast control software, can achieve powerful broadcast control functions. It also boasts good scalability and high operational stability, making it widely used in performance exhibitions, creative displays, multimedia presentations, and other occasions.

Hotline：

+86 15921814956
+86 15850351852

Functional Features of the TS Series

1. Industrial-grade hardware design with redundant architecture, ensuring high stability operation 7*24.

2. Maximum support for 4-nos 4096*2160@60Hz point-to-point display

3. Maximum support for decoding 4 streams of 4096*2160@60fps video .

4. Supports video source capture such as HDMI and SDI

5. Integrated 16-port network card (TS1516)

6. Built-in high-performance broadcasting control software

7. Supports window tiling, screen rotation, splitting, and custom sizing

8. Support PAD visualization control

9. Support for program preview, arrangement, and management

10. Support for program playback progress management, playback log recording, and scheduled task management

11. Supports various types of media files, including videos, images, PPTs, and subtitles

12. Support PPT control via page-turning pen13. Supports geometric debugging, fusion correction, and enhances creative implementation flexibility

Case	1U
CPU	AMD 6-core 12 thread
Memory	16G
Graphics card	Integrated graphics card
Output interface	1 nos DP1.2
Carrying capacity	4096*2160@60Hz
Storage	256GB high-speed solid-state drive with storage space
Decoding ability	2 channels 4096* 2160@60fps
Cascading	Not support
Player	ThinkShow activated version of broadcast control software
Layer	32
Tablet control	support
Network port	1*1GbE RJ45
USB PORT	2USB3.0;3USB2.0
Video capture card	support (optional)

File Name	Explain	Download times	Download
TS series Specification Version：V25102002		274	查看 Download
