BX-L1A Video Controller

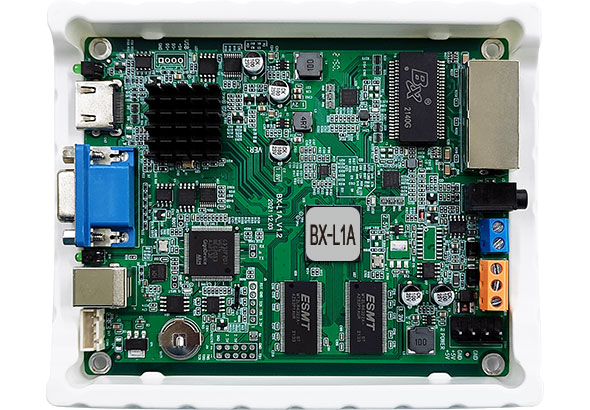

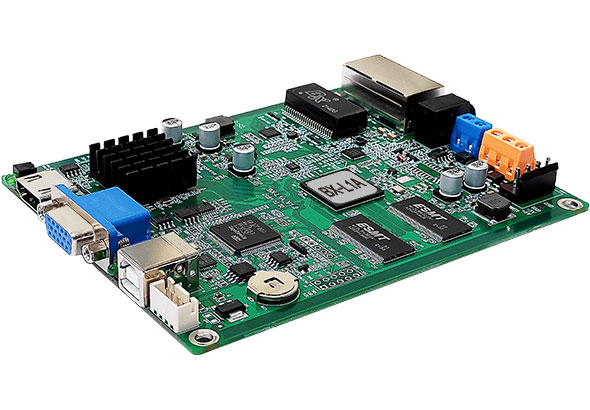

BX-L1A is a board type video controller. The on-board HDMI input interface and VGA input interface have the same function and performance index as OVP-L1X, which is convenient for supporting applications with various Android boxes

Support video scaling;
Support HDMI video input and VGA signal input;
2 Gigabit network ports output, maximum load 1.31 million pixels @ 60Hz; The maximum width is 3840 pixels and the maximum height is 2500 pixels ;
On board multi-functional interface: HDMI input + VGA input + 5W audio output + USB configuration + brightness sensor + RS485.

Coated with UV three proofing glue, GB double 85 protection grade, dustproof, moisture-proof, anti-static, anti salt fog;

-40 ~ 80 C ambient temperature, 3.5V-5.5V wide voltage, 7*24 hour continuous power, less than 0.3% failure rate.



Hotline：

+86 15921814956
+86 15850351852

Support BX-V series and BX-VMF
Control size：Total pixels≤1280*1024 @60Hz，2048*1024 @30Hz； Max width is 3840,max height 3840.

Support timing switch of input video source;
Support turning on/off of equipment output signal;
Support customized  resolution;
Support point-to-point input and output;
Support the capture and partial display of the input video source image;
Support input adaptive signal source resolution;
Support output adaptive display parameter configuration;
Support fast and flexible color temperature adjustment;
Support input and output signal hot backup;
Restore 8/16 kinds of user modes for fast using;

Support HDMI and VGA video signal input
Support random to setup input,output resolution
Support HDMI Audio input , synchronous transmission by Gigabit network
Dual Gigabit network output,support up to down,left to right split


Advanced design,best quality ,zero fault from factory delivery,repair rate ≤0.1%;
Support 3.3V-6V wide working voltage,stable working from -40°C~80°C .

Video Input source
HDMI*1 VESA standard: 1920*1080@60Hz downward compatible, HDMI 1.4
VGA*1 VESA standard，UXGA@60Hz downward compatible



Video Output Port
NET×2

2 Gigabit Ethernet port output, connect LED display by LAN cable, directly connect with receiving card

total pixels:≤1.31 million pixels, width≤3840, height≤2500,



 Audio Input/Output Port
HDMI audio Built in HDMI audio input port
AUDIO_OUT 3.5mm simulate audio output port



Control interface
COM USB control interface
RS4485/RS232 Standard RS485(RS232 is optional)



Important function
Communication function Support serial communication, complete related parameter setting and function configuration of OVP equipment, complete parameter setting of LED display
Schedule Task Support timing switch of input video source
Intelligent configuration Support equipment parameter adaptation according to the resolution of LED display screen
Image capture function Support the capture and partial display of input video source image
Point to point function

Support on and off of point-to-point signal output mode
Brightness adjustment Support 100 level brightness adjustment
EDID setting Support customized input resolution of  HDMI, DVI signal
VGA Correction Support VGA adjustment and VGA ADC correction
Output control Support open&close of output signal
Color temperature adjustment Preset natural, warm, cold three kinds of display effect, user can also customize the color temperature
User mode Support pre storage ≤ 8 user modes, convenient for scene switching
Hot backup Support hot backup function of input and output image
Facotry reset Support reset to  factory settings



System update and maintenance
Firmware update Support update firmware and FPGA online



Details
Input voltage 5V(3.3V~6V)
Maximum power ≤10W
Size 130.8mm×104.4mm×17mm
Packing information BX plastic shell bracket packaging, flame retardant, environmental protection, anti-static, high temperature resistant, directly on the screen.
Weight(excluding package) ≤160g



Environmental adaption
Working temperature -30℃～70℃
Ambient humidity 15%～85%
